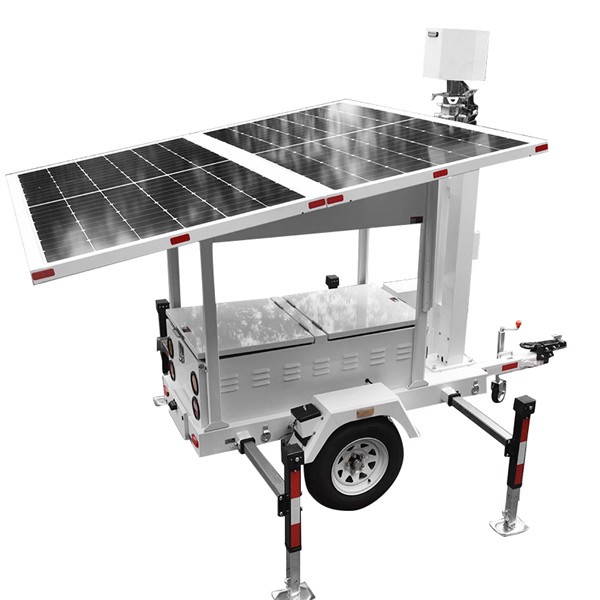

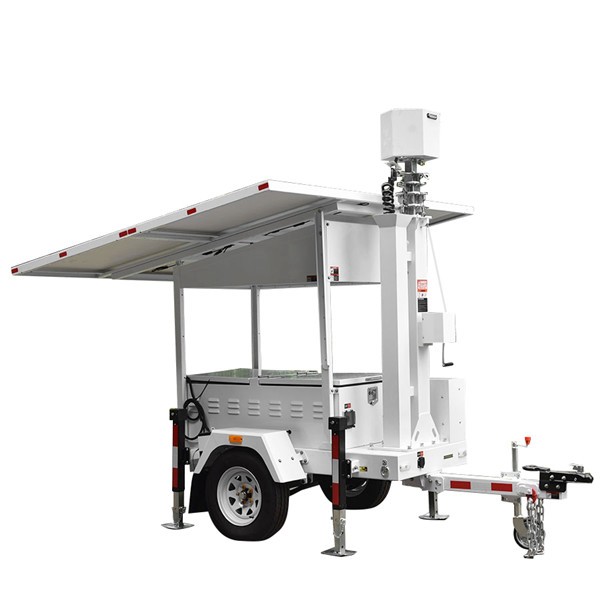

The Smart AI Mobile Solar Trailer is an autonomous surveillance trailer that can be rapidly deployed in a multitude of locations. It provides security for construction job sites, parking lots, public events, and any off-grid location that requires video monitoring.
Our Mobile Surveillance Trailers are designed for maximum flexibility and security, making them ideal for construction sites, events, and remote locations. Equipped with advanced Solar CCTV technology, these trailers provide reliable, 24/7 monitoring without the need for external power sources. Our Rapid Deployment Surveillance Equipment ensures quick setup and immediate surveillance capabilities, while the integrated Network Cameras deliver high-definition video quality. Whether you need to enhance safety at a construction site or monitor a large area, our solutions offer the perfect blend of mobility, efficiency, and cutting-edge technology. Feel free to adjust any part of this description to better fit your brand voice or specific product features!
Telescopic Mast
Material·Steel Q355,Hot Dip Galvanized
Type· Square
Telescopic Height· 6.3m / 20.7ft Section· 5
Wire Rope·Stainless Steel 304,5mm
Spiral Cable·2 × Cat5e + 14 × Power Supply
Lifting Method· Manual
Winch Recommended Loading· 5kg ~ 50kg / 11lb ~ 110lb
Windproof·117kph / 72.7mph
Trailer
Trailer Standard· US / AU / EU
Trailer Light·US / AU / EU
Tow Hitch·50mm / 2'' Ball Type
Jockey Wheel· 200mm / 8''
Axle· Single,Suspension,Electric Brake
Tire·14 inch
Outrigger· 4 × Manual,Hot Dip Galvanized
Bubble level· 4 pcs
Wheel Chock·2 pcs
Forklift Pocket·Yes
Lifting Ring·4 pcs
CCTV System
Power Supply·DC12V,24V,48V
PoE Switch· Yes
Strobe lights·4 pcs
450W Inverter·Optional
CCTV Camera·Optional
Hikvision DS-2SE4C425MWG-E/26(F0) 4 MP 25 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
• Captures a large area and great details at the same time
• High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16×digital zoom
• Expansive night view with up to 100 m IR distance ＆ 30 m white light
• Supports 12V DC ＆ PoE+Focuses on human and vehicle targets classification based on deep learning
NVR (DS-7608NXI-K1)
• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs
4G Industrial Router
• Dimension: 90*84*25mm
• Ethernet Ports: 1*WAN/LAN(Configurable)+1*LAN
• WiFi: IEEE 802.11 b/g/n, 1*RP-SMA-K antenna connector
• Power Supply: 2-pin terminal block & DC socket redundancy
• SIM Card: Mini SIM(2FF)
• Installation: Wall Mounting & DIN Rail Mounting Available
Solar Panels
Solar Panel· 2 × 490W
Open Circuit Voltage·DC41.1V Efficiency· 24.5%
Series & Parallel·2 in parallel
Angle·60º,Electric Lifting
Control System
Solar Controller· 40A MPPT Efficiency· 95%+ Protection· Yes
Remote· Yes
Victron Energy·Optional
LFP Battery
Battery· 1 × 315Ah
Voltage· DC25.6V
Capacity·8.4kW·h
BMS· Yes
Heater·Yes
Life· Cycle 4000 at 95% DOD,25℃
Running Time·72 hours for 100W
Charger system
Battery Charger·1.5kW Charging
Current· 45A
Efficiency· 89%
Socket·1 × 16A,AC120V
Dimension
Dimension (Transportation)· 2230 × 1690 × 2100 mm
Dimension (Traveling)·3530 × 1650 × 2890 mm
Dimension (Operation)·3530 × 2400 × 7420 mm
Weight·1000kg / 2205lb
System Voltage·DC24V
Work Temperature·-20℃~60℃ / -4℉~140℉
Warranty:·2 year
