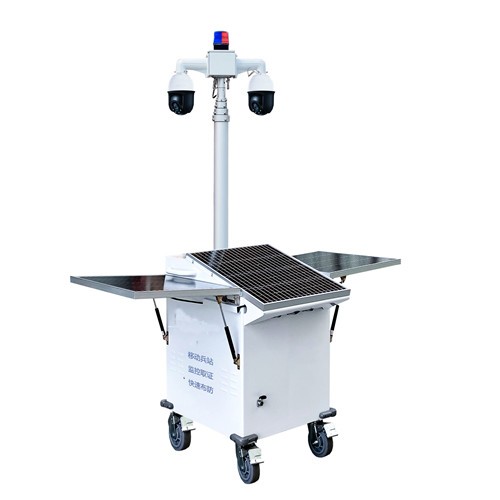

●The vehicle body is made of electrolytic plate material, with rust-proof primer and multiple layers of paint, resistant to rust.
● 3-6 meters overall height one-touch lifting or wireless remote control
● magnesium-aluminum alloy Pole, T6 treated, 8 wind resistance level
●Equipped with Hikvision TandemVu PTZ cameras DS-2SE4C425MWG-E(14F0)
●Local and remote real-time monitoring of device
●200/300A large-capacity lithium battery multi-level over-discharge protection.
●Fast power supply from mains electricity 110-240VAC and Solar Power
●Configured with 2 directional wheels, 2 universal wheels, and brakes.
● LCD screen display and PTZ controlle keyboard
● MPPT tracking efficiency not less than 99.5%
● Photovoltaic conversion efficiency of 21%, charging conversion efficiency up to 98%
● 60W*3/2*100W/4*100W, monocrystalline silicon A-grade solar panels
●4G Industrial Router,6 Lan Ports, RS485 Port,WIFI,GPS
●Out Door Speaker
● Foldable, one-key electric angle adjustment or remote angle adjustment
Main configuration
●The overall height of the equipment is 4 meters, with one-touch lifting or wireless remote control for pneumatic pole lifting, and intelligent air pressure detection.
●The lifting pole is made of high-quality magnesium-aluminum alloy, T6 treated, with a wind resistance level of 8.
●Oil-free silent compressor, high thrust low noise, air-oil-water separation to prevent freezing inside the pole during winter.
●Equipped with a Hikvision TandemVu PTZ cameras DS-2SE4C425MWG-E(14F0)（Camera not incled)
●Supports local and remote real-time monitoring of device battery remaining capacity, solar charging status, load power status, mains charging status, and data statistics.
●High-fidelity sound pickup and speaker for convenient remote on-site control.
●Powerful endurance capability, equipped with a standard 2400WH large-capacity lithium battery with multi-level over-discharge protection.
●Supports fast power supply from mains electricity 110-240VAC.
●Supports MPPT solar energy supplementation, with one-touch adjustment or wireless remote control of solar panel angle, with the following specifications:
●Provides RS485 data interface, communication baud rate: 1200~115200bps, protocols: Pelco_P, Pelco_D, 256 address codes.
●The vehicle body is made of electrolytic plate material, with rust-proof primer and multiple layers of paint, resistant to rust.
●Equipped with an operation compartment for convenient viewing of equipment videos and real-time status, with a panel reserve network port for easy online debugging, and compartment door with key.
Equipped with an equipment function expansion compartment to accommodate different needs, with compartment door and key.
●Configured with 2 directional wheels, 2 universal wheels, and brakes.
●The vehicle body is equipped with 4 hoisting rings for easy lifting to higher places, and ropes can be used for ground fixation.
●The support legs are retractable, foldable, adjustable in angle, and height-adjustable (with rocker arm), effectively increasing the ground contact area for safe and stable use
●The product is compliant with ISO9001 Quality Management System Certification, ISO14001 Environmental Management System Certification, ISO45001 Occupational Health and Safety Management System Certification, MA/ilac-MRA/CNAS GB4943 test report
Control Unit
integrated touch screen for display and PTZ control keyboard
● Interface encryption to prevent unauthorized access
● Low battery charge reminder
● Real-time refreshing of device status information:
Mains charging voltage(110V-230V), current, active power
Solar charging voltage, current, power
Battery voltage, current (charging/discharging), battery percentage
Load voltage, current, power; Internal device temperature
● Background statistical functions:
Mains power consumption/Solar charging/Load energy consumption statistics;
● Parameter configuration: Customizable settings based on application requirements
● Language settings: Multiple language options available (default: English)
● Control functions:
Raise and lower boom using hardware buttons or touch screen
Adjust solar panel angle using hardware buttons or touch screen
Turn on/off spotlight using hardware buttons or touch screen
● High-power, low-energy consumption TI voltage conversion solution for stable and quality power supply to the load
● Temperature-controlled cooling: Device initiates cooling function based on internal temperature, with heat discharge through concealed cooling system
● Illumination: Lights turn on inside the device cabinet when door is open, and turn off when closed
● Multi-level over-discharge protection for extended battery life
● Remote control for pneumatic boom operation
● Remote control for boom elevation and solar panel angle adjustment
● Reserved panel Ethernet port for easy peripheral connection
Solar Panel
Solar power supply system
● MPPT tracking efficiency not less than 99.5%
● Photovoltaic conversion efficiency of 21%, charging conversion efficiency up to 98%
● 60W*3, monocrystalline silicon A-grade solar panels
● Foldable, one-key electric angle adjustment or remote angle adjustment
