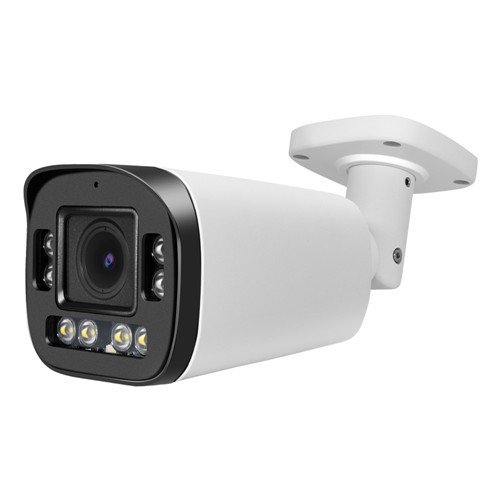

5MP IP/Network Dual Light Full Color Bullet Camera

5MP IP/Network Dual Light Full Color Bullet Camera

Product Item:GW-IP2058DL-I
• H.265/H.264 5MP IP/Network IR Bullet Camera
• Up to 5 megapixel high resolution
• Max. 2592*1944@25fps(50Hz/60Hz)
• Support RTSP&Onvif(17.2 with profile S)
 Compatible with many third-party NVRs and CMS
• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service
• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, WDR,3D-DNR,Shutter, IR-CUT,
 D-WDR,Mirror, Image Flip etc. Functions
•  Built-in Mic. Audio in/ Speaker Audio Out Optional
• 12V DC (PoE Optional)
• 5X 2.7-13.5mm Motor Lens
• IR range: (IR: 30m)  + (White Light :20m)
• Water-proof: IP66
  • Product Detail
  • FAQs




Image    Sensor: 1/2.8''Sony415    8MP CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.05lux @(F1.6, AGC ON), 0 lux with IR
Shutter Time: 1/25 s to 1/100,000 s
Lens:

3.6mm F1.6 Fixed Lens (2.8mm Optional)

Day&Night: 2pcs Homologous Dual Light (Warm Light+IR LED Light)
Image Enhancement: BLC/3D    DNR/D-WDR
Motion Detection Support
Privacy Protection Support(4    Self-customized Areas)
Water-Proof: IP66
Illumination for Infrared Switching: 0.5~3Lux
Infrared Wavelength: 850nm
Mimimum Illumination: 0    Lux(IR ON or Warm Light ON)
LED Light Distance IR 25m/Warm light 20m
Smart function: Humanoid detection,video cover.
Compression Standard
Video Compression: H.265/H.264/MJPEG
Video Bit Rate:

512Kbps~12288Kbps(main stream H.265)

64kbps~512Kbps(sub stream H.265)

64kbps~1024kbps(third steam H.265)

Dual Streams: Yes
Triple Streams: Yes
Image Resolution:

main stream:3840*2160(8MP)/2592x1955(5MP)/2560x1440(4MP)/1080P

sub stream:720x480(D1)/640x480(VGA)/640x360/352x288(CIF)

thrid stream:1080p/720p/CIF

Frame Rate:

main stream:20fps(3840*2160)8MP/60fps(1080p)

sub stream:30fps

thrid stream:5fp

Stream: Triple streams
Image Settings: 3D    NR, D-WDR, Image    Flip, Saturation, Brightness, Contrast, Sharpness
adjustable via client software, web browser or    Smartphone App
Day/Night Switch: support Full color mode,auto switch mode(BW with IR led),trigger mode(Humanoid triggers white light at night)
Audio
Audio Compression: G711U/G711A/AAC
Audio Bitrate 64K(G711)/16k(AAC)
Audio In/Out: Optional (RCA socket)
Build-in MIC: Optional
Volnume adject: Yes
Network
Network Protocols: HTTP,    TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, RTMP,DDNS,    IP Search(Support Danale IP camera, DVR, NVS etc.)
General Function: Anti-Flicker, heartbeat, password protection, privacy    mask, Watermark
System Compatibility: ONVIF(17.2 with profile S)
On-line Viewing Max.    Support 2 Users Simultaneously
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet Interface
Audio Interface: RCA Audio input/output  Interface (Optional)
Alarm in/out interface: Support(1ch) (Optional)
SD card interface Support TF card(micro TF card,up to 128G) (Optional)
DC Power Plug: DC Power Femate Interface/POE(optional)
General
Operating Conditions: -10 °C ~ 60 °C
Humidity 95% or less (non-condensing)
Power Supply: 12 V    DC ± 10%/PoE(Optional)
Power Consumption: 12 VDC ± 10%, Max Power Comsumption Less than 8W
(When the infrared lamps turn on)
Weight: 0.56KG




Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your Deposit payment.

Q: What is your accepted payment type?
A: Wire transfer, Paypal and Western Union; T/T advance 30% and balance when goods ready to ship.

Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q: What kinds of customization services Offered?
A: Logo/ Label/ Packing Box/ Manual/ Firmware

Q: Delivery time?
A: Usually 2-3weeks

Q: Warranty?
A: 18months for cam, 2year for Recorder

Q:What can you buy from us?
A:CCTV Camera,IP Camera system,Wifi Camera system,Analog Camera system,NVR DVR
   CCTV Accessories:Power adapter, HDD(brand new and refurbish),Bracket etc; We can help  to sourcing high quality with good price for all your enquirements.

...
